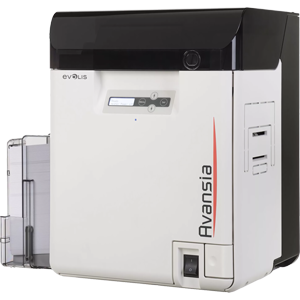

Evolis Avansia
Everything Retransfer Print Technology Can Offer You
Avansia is a Retransfer technology direct-to-card printer for very high quality card delivery. Designed for rigorous use, Avansia is extremely robust and provides high security card issuance. Capable of issuing more than 140 single-sided color cards per hour, it is ideal for card issuance in medium and large quantities.
Technology
Method:
Retransfer, edge-to-edge printing
Mode:
Single-Sided and Dual-Sided (option)
Quality:
600dpi
Speed:
144 cph (1-sided, YMCK)
96 cph (2-sided, YMCKK)
133 cph (1-sided, YMCK + lam)
79 cph (2-sided, YMCKK)
Capacity (Hoppers)
Input:
250 cards (0.76 mm)
Output:
20 cards (0.76 mm)
Reject:
30 cards (0.76 mm)
Cards
Size:
ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm)
Thickness:
0.76 mm (manual adjustment possible)
Material:
PVC, Composite PVC, PET-F, PET-G, Polycarbonate (PC), ABS
Machine
HxWxD
436 x 340 x 297mm (printer only)
436 x 620 x 305mm (printer + lam)
Weight
20kg (printer only)
30kg (printer + lam)
Interface:
USB, Ethernet
About
An Exceptional Aesthetic Result
With Avansia, all card designs are feasible. The retransfer technology allows printing on the entire surface of the card with no borders.
Thanks to the print resolution of 600 dpi a remarkable fineness of printing is achieved, with exceptional rendering of images and texts.
Safety is Key
Avansia creates the most secure cards for you. Encodings, UV elements, micro-texts, watermarks, guilloches: numerous possibilities of graphic and electrical personalization are provided, which contribute directly to the security of the cards
You need even more security? Equip your Avansia with a lamination module. You then have access to a optimal level of security, thanks to different types of laminates (varnish, patch, generic and specific holograms).
Need help choosing? Please call our sales team on 02 9651 6000 or use our enquiry form.
