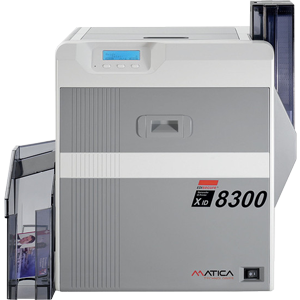

Matica XID8300

Retransfer Printer

The modular single-or double-sided EDIsecure® XID8300 Retransfer Printer was developed for industrial needs, thus it is provided with various optional modules such as bend remedy, flipper, and encoding modules. Based on wealth and experience with XID Retransfer Technology, the printer is ready for plug and play inline encoding and lamination. With its compact size,the printer delivers the right combination of reliability, performance and affordability for printing durable and secure cards. It almost achieves offset printing quality, even on uneven surface of smart cards.

Technology

Method:

Retransfer Dye-sublimation

Mode:

Single- or Dual-Sided (Optional)

Quality:

300dpi

Speed:

120 cph (1-sided, colour)

Capacity (Hoppers)

Input:

200 cards (0.76mm)

Output:

100 cards (0.76mm)

Cards

Size:

ISO ID-1, CR80

Thickness:

0.25 - 1.02mm*
*hopper adjustment required

Material:

PVC, Composite PVC, ABS, PET and Polycarbonate

Machine

HxWxD

360 x 343 x 322mm

Weight

13.9kg

Interface:

USB 2.0, Ethernet

About

The modular single-or double-sided Matica® XID 8300 Retransfer Printer was developed for industrial needs, thus it is provided with various optional modules such as bend remedy, fl ipper, and encoding modules. Based on wealth on experience with XID Retransfer Technology, the printer is ready for plug and play inline encoding and lamination. With its compact size, the printer delivers the right combination of reliability, performance and aff ordability for printing durable and secure cards. It almost achieves off set printing quality, even on uneven surface of smart cards.

The XID 8300 prints on a variety of card materials including longlasting, durable non-PVC cards such as ABS, PET, and Polycarbonate. The lockable, spacious card hopper stores up to 200 blank cards to secure an interrupt-free workflow. The user-friendly front-loading system with replaceable cartridges makes changing of supplies fast and simple.

The printer is ready to meet your individual requirements and can be equipped according to the customer needs. Optional magnetic stripe, IC contact and smart card encoding is possible for further demands on card functionality. Extend the life time and security of your cards by joining the printer with the Matica® Inline Lamination Modules ILM-LS for single-sided lamination and ILM-DS for simultaneous dual side lamination.

Diverse security features such as electronic security lock, Kensington- lock, dye-sublimation UV ink ribbon for invisible security printing, IPSEC for encrypted data transfer through networks, and Security Erase of black data on used supplies help to secure the environment and cards from counterfeiting and to avoid misuse of personal information.

Need help choosing? Please call our sales team on 02 9651 6000 or use our enquiry form.

Brochure

XID8300 Product Information Brochure (English)
Download

Document

Physical Access Control Brochure (English)
Download
XID8300 Kurzanleitung User Manual (English)
Download
XID8300 Case Study: University of Irvine (English)
Download
